Fanless Industri Panel Pc IP67 Waterproof With 10 Points PCAP Touch Screen
Feature
- Made of sturdy and durable aluminum Alloy front bezel+High strength cold rolled steel back case.
- Industrial LCD panel, wide viewing angle, high nits, true color.

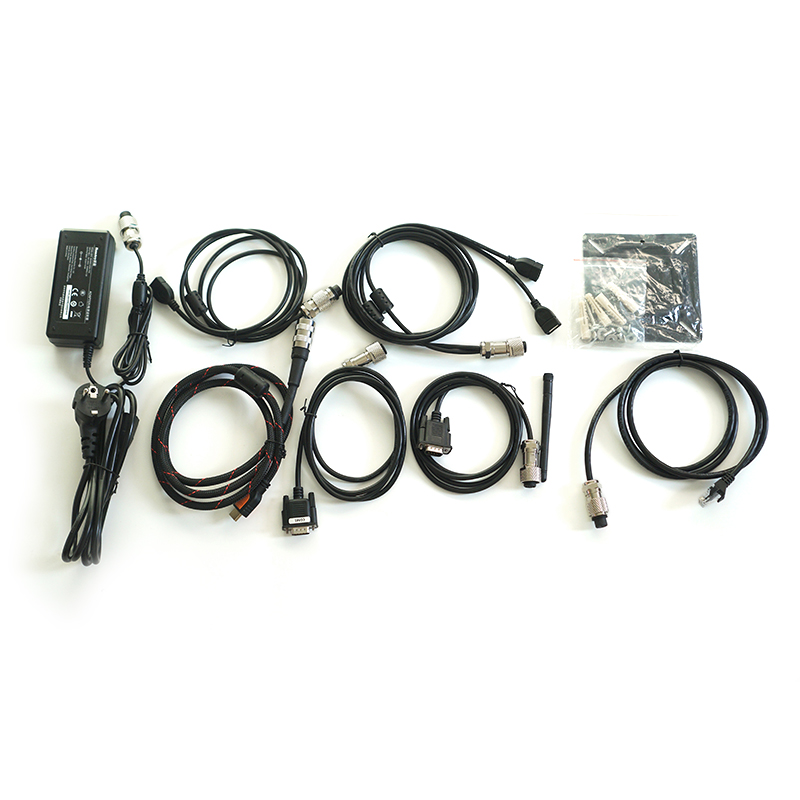

- Fully sealed and fanless design, full IP67 waterproof, Sealed I/O with cable set included.
- Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
- EETI waterproof solution, touch function can work well with drop water on the screen.
- Optical bonding solution.
- 1000 nits, sunlight readable.
- Anti glare.
- Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
- High performance mainboard, 7x24 continuous operation.
Mainboard PC
| PC |
| CPU | CPU: Intel® Celeron J1900, quad core, 2.0GHz,fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 4G DDR3 (2G, 8G optional) |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 32G, 128GB, 256GB |
| HDD: 500GB, 1TB |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 3xUSB , 2xCOM RS232, 1xRJ45 |
| 1xHDMI/POWER DC |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
Screen
| LCD panel |
| Panel size | 10.1" |
| Resolution | 1280*800 |
| Aspect ratio | 16:10 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Screen and Glass | Optical bonding |
| Glass | Anti-Glare glass |
Touch panel
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >35 million times |
| Touch options | (5 wire resistive touch optional) |
Enclosure
| Material | Aluminum Alloy front bezel+High strength cold rolled steel back case |
| Color | No woodgrain texture RAL6018 Yellow green for Glossy Chassis and bezel |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Full IP67 waterproof |
Operating Environment
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
FAQ
Q: What’s Minimum Order Quantity?
A: 1 pcs sample. You are welcomed to place order to test our product quality and services.
Q: What is your production time?
A: Different quantity, different production time. It will use about 9-12 days if your order over 500pcs.
Q: Are the pictures real picture?
A: The pictures of all products we sell are 100% real shoot, If you want to be our sales agent, you can cooperate with our company.
Q: What’s your Payment Terms?
A: TT or Paypal, Western Union.
